Product Description

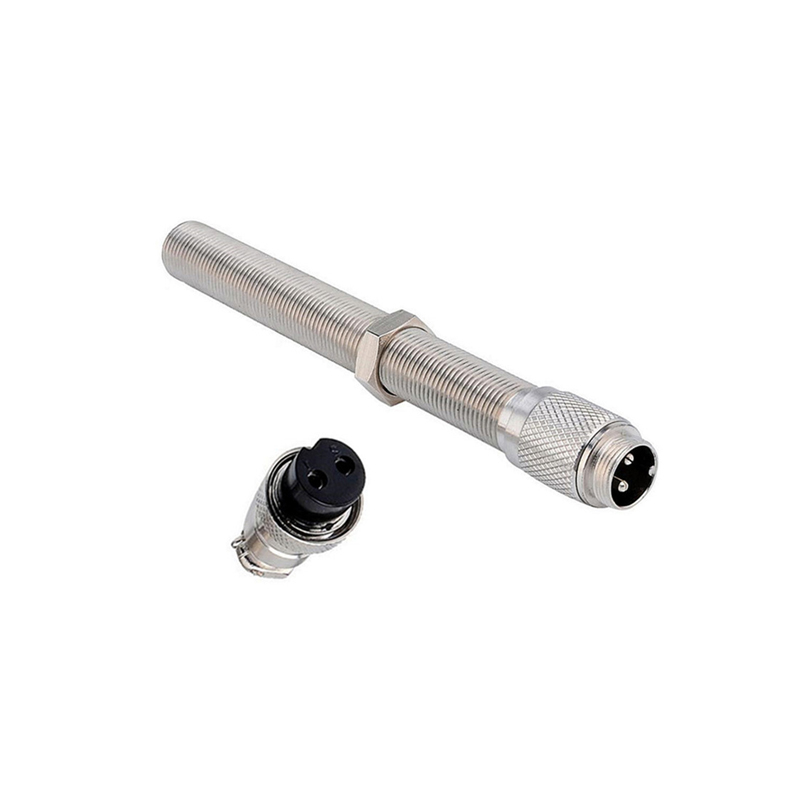

5/8-18 UNF MPU MSP6710 Generator Magnetic Pickup Speed Sensor for Engine

5/8-18 UNF Thread Magnetic Speed Sensor MPU MSP6710

The Speed sensor MSP6710 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor.

Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit.

The signal from the MSP677 Speed sensor MPU, teeth per second (Hz.), is directly proportional to engine speed.

Speed sensors are available in various lengths in both U.S. and metric threads.

Wire leads, military connectors, automotive connectors or stud terminals are also available.

Over 30 styles currently available

5/8-18 UNF Threaded MSP6710:

Thread Length: 4.86in [123.4mm]

Harness Length: na

Connector: Military

With Mating Connector: Yes
